Power Quality Cabinet

SVGM Reactive Power Hybrid Compensation Cabinet

Introduction

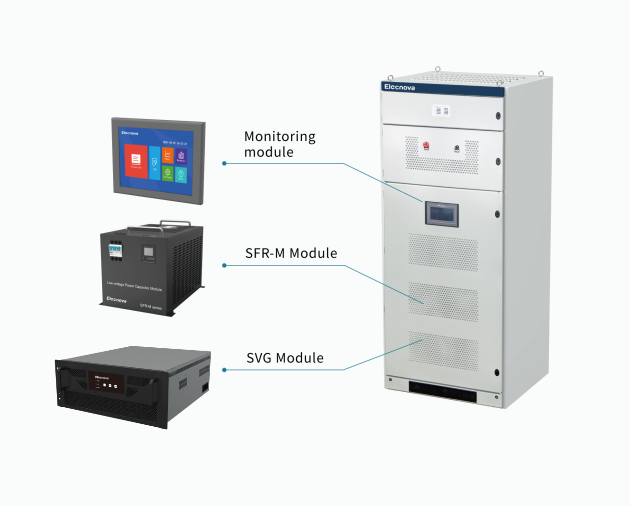

SFR-SVGM is the combination of a SFR-SVG static reactive power compensation module and SFR-M harmonic suppression compensation module in a cabinet for accurate continuous compensation.


Technical Characteristics:

Intelligent operation: Full response time less than 10ms, fully modular design, flexible combination

Intelligent and flexible: The intelligent monitoring module can automatically adjust the output ratio of the SVG/passive module according to the dynamic requirements of the system, and at the same time meet the compensation

Flexible smoothing: Completely linear, dynamic output, smooth and stable, the power factor is always maintained at 0.99, neither overcompensating nor undercompensating

Self-diagnosis: Comprehensively monitor the real-time status of the capacitor to avoid the capacitor "working with disease" to extend the service life



 Product parameters

ItemParameters

Single cabinet compensation capacity

100~400kvar

AC input

Rated voltage

400×(1±20%)

Rated frequency

50/60Hz±10%

Wiring method

Three phase four wire

Technical indicators

Target power factor

0.99

Split-phase compensation capacity

30~100%

Harmonic compensation times

Specific times

Response time

≤10ms

Overload protection

Automatic adjustment

Working mode

Automatic or manual

Communication interface

RS485/Ethernet optional

Protection level

IP20

Display interface

7/10 inch touch screen(optional)

Altitude requirement

≤1000m, high altitude projects can be customized

Parallel operation

Available

Cooling method

Forced air cooling

Operating environment temperature

-25℃~45℃

Storage/transport environment

-40℃~70℃

Working/storage relative humidity

Relative humidity 20%~95%, no condensation/

relative humidity 10%~95%, no condensation

Single cabinet dimension

1000×1000×2200 mm

Noise

<65dB(A)

Other

Non-standard sizes can be customized, special requirements can contact SFERE

SFR-M Module

Capacity: 0~50kvar optional

Reactance rate: 7% and 14% optional
