Introduction

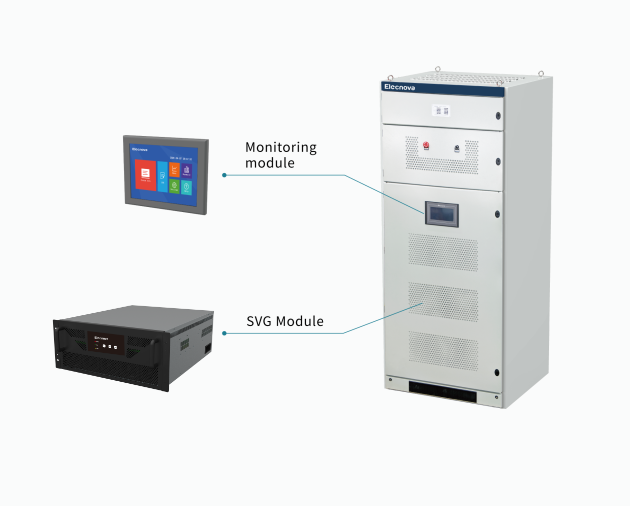

SFR-SVG is a static var generator. It is based on the digital signal processor (DSP), and the self-switching bridge circuit is connected in parallel to the power grid through the reactor. The real-time data acquisition technology and dynamic tracking technology are used to detect the voltage and current information of the power grid. After the internal DSP calculates, the reactive component of the load current is extracted, and then the PWM signal is sent to the internal IGBT to control the inverter to generate the reactive current that meets the requirement according to the setting, thereby achieving the purpose of reactive power compensation.
Product parameters
| Item | Parameters |
Rated value | 400×(1±20%) |
Rated frequency | 50/60Hz±10% |
Wiring method | Three phase four wire |
Reactive power compensation capacity | 50~400kvar |
Phase separation compensation ability | 100% with phase compensation |
Response time | ≤5ms |
Overload protection | Can be set automatically |
Active power loss | <3% rated power |
Working mode | Automatic or manual |
Communication interface | RS485/Ethernet optional |
Protection level | IP20 |
Display interface | 7/10 Inch touch screen(optional) |
Altitude | ≤1000m, High altitude projects can be customized |
Parallel operation | Can achieve |
Cooling method | Forced air cooling |
Operating environment temperature | －25℃~45℃ |
Storage/transport environment | －40℃~70℃ |
Working/storage relative humidity | Relative humidity 20% ≤ 95%, no condensation / Relative humidity 10% ≤ 95%, no condensation |
Single cabinet size | 1000×1000×2200 mm |
Noise | <65dB(A) |
Other | Non-standard dimensions can be customized, special requirements can contact Sfere |
