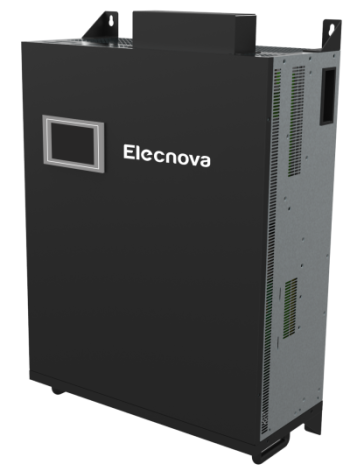

Wall-mounted AHF Module

Active harmonic filter is a new type of electronic device for dynamic filtering of harmonic and reactive power compensation. It can conduct real-time filtering and compensation for harmonic distortion and dynamic reactive power, and is used to overcome disadvantages of conventional harmonic suppression and reactive compensation methods of the last generation of harmonic filters, thus realizing systematic harmonic filtering function and reactive power compensation function. In addition, it is widely applied into power, metallurgy, petroleum, port, chemical and industrial and mining industries.

Input

Voltage :

Liner voltage 210/400/690V
System Voltage angel :

±10%
Frequency :

50/60Hz ±5%

Output and Installation

Capacitance :

25,30,50,75,100,150A
Type :

Wall-mounted type
Cooling mode :

Forced air cooling

Functional Indication

Filtering rate :

≥95%(within the capacitance of the Contract and 30% harmonic filtering higher than the Contract)
Wave filtering range :

2nd~51st Harmonic (25th or above should be mentioned on the Contract)
Total response time :

≤5ms
Instant response time :

≤100us
Dynamic currency :

1.2 times rated output for wave filtering, 1min
Power factor setting :

Available, configurable

Protection

Overload protection :

Automatic current limit at 100% rated output
Other protection :

Over voltage protection, under voltage protection, over temperature protection, over currency protection

Working Mode

Stand-alone running :

Available
Parallel device running :

Available

Display and Operation

Display :

4.3” HMI
Display contents :

Current, Voltage, Rate, THD etc
Operation :

Multi operation mode selection, local or distance
Communication(RS485 interface) :

Modbus-RTU, with distant monitoring interface and Admin database, user could monitor the parameters of the device by internet terminal

Environmental condition

Protection level :

IP20(Customized Available)
Working environmental temperature :

-5℃~40℃
Storage/Transportation temperature :

-25℃~55℃
Working/Storage Humidity :

Relative humidity 5~95%, No condensation
Altitude :

Below 1000m(the capacitance should be reduce for higher altitude using)
